FOAMING REGULATOR H-600

Classification :

FOAMING REGULATOR AGENT

H-600 is one kind of acrylic processing aid with high molecular weight, it is also called foaming regulator in foaming board and WPC application.

info@watchchem.com Whatsapp/Tel:8618678062521

Message

Keywords:

FOAMING REGULATOR AGENT

DESCRIPTION
H-600 is one kind of acrylic processing aid with high molecular weight, it is also called foaming regulator in foaming board and WPC application. H-600 can provide good fusion property and appearance for PVC foamed products.
KEY PROPERTY
▪ Promote fusion
▪ Lower density of PVC foamed products
▪ Promote uniform cell structure
▪ Improve the glossiness
▪ Improve the melt strength
▪ More C_aCO₃ added for cost-saving
PRODUCT INDEX

Item	Unit	Test standard	Specification
Appearance	-	-	White powder
Bulk density	g/cm³	GB/T 1636-2008	0.45±0.10
Sieve residue (30 mesh)	%	GB/T 2916	≤ 1.5
Volatile content	%	ASTM D5668	≤ 2.0
Intrinsic viscosity (η)	-	GB/T 16321.1-2008	13.0-14.5

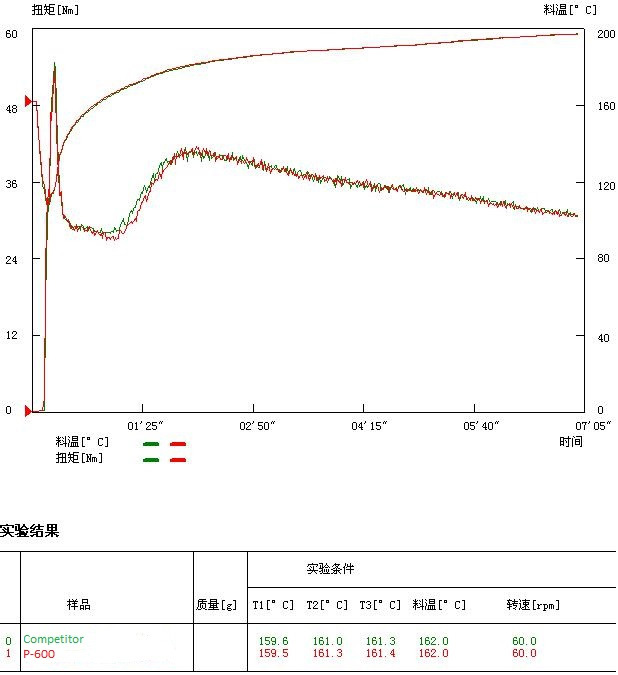

FUSION PROPERTY COMPARISON

Test equipment type: RM-200C torque rheometer from Harbin Hapro Electrical technology Co., Ltd　Volume: 60ml

RECOMMENDED FORMULA

Foaming board application

Item	Cabinet board	Poster board
PVC	75kg	50kg
C_aCO₃	50kg	35kg
Recycle	30kg	20kg
Acrylic processing aid H-600	8kg	4.8kg
Internal lubricant LU-60	0.5kg	0.3kg
AC	0.4kg	0.3kg
NC	1.2kg	0.6kg
Lead stabilizer LS-28	4.2kg	2.8kg
TiO2	2.5kg	1.8kg
Whitening agent	0.03kg	0.03kg
PE Wax PW-200	0.35kg	0.25kg
316A	0.4kg	0.28kg

WPC products application

Item	Dosage
PVC	75
C_aCO₃	50
Wood	12.5
Ca-Zn Stabilizer CS-60	4
Acrylic processing aid H-600	5.5
AC	0.25
NC	0.5
CPE-135A	3
Internal lubricant LU-60	0.25
PE Wax PW-200	0.4
Acrylic processing aid P-175	1.2

STORAGE

The product should be stored in cool and dry surroundings.
The shelf life is two years, it can be still used if qualified by inspection after shelf life.
PACKAGE

25kg/bag with PP bag or customized packaging according to customer requirements.
LOADING CAPACITY
For 20GP container, we can load 16mt with pallets or 18mt without pallets.
For 40HC container, we can load 28mt with pallets or 28mt without pallets.

Factory

Customer visits

Delivery site

FOAMING REGULATOR AGENT

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

COOKIES

required

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

analyze

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

Feature

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

advertise

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

Licence

Test conditions		160℃ 90rpm

Fusion/Type	Highest torque(Nm)	Equilibrium torque (Nm)	Fusion time (S)
1# Competitor	40.5	30.6	100
2# H-600	40.5	30.6	100

Test conditions		190℃ 60rpm

Fusion/Type	Highest torque (Nm)	Equilibrium torque(Nm)	Fusion time (S)
1# Competitor	32.0	21.0	59
2# H-600	32.0	21.0	59
